Loadout and Discharge

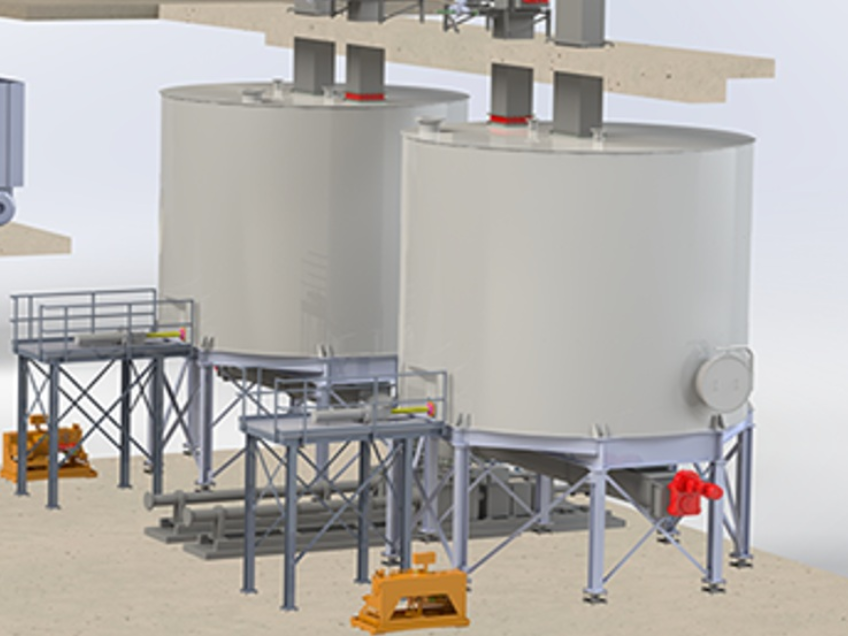

The JMS Bio-FRAME employs a sliding frame at the bottom of a storage bin, hopper, or silo, undercutting the material above while the frame moves away from the discharge, and carrying material when it moves toward the discharge point. It is commonly used for loading trucks or feeding sludges to solids pumps and conveyors. The Bio-FRAME varies in size from 10 to 1,000 cubic yards and in shape, from a rectangular ladder frame to a round elliptical frame.

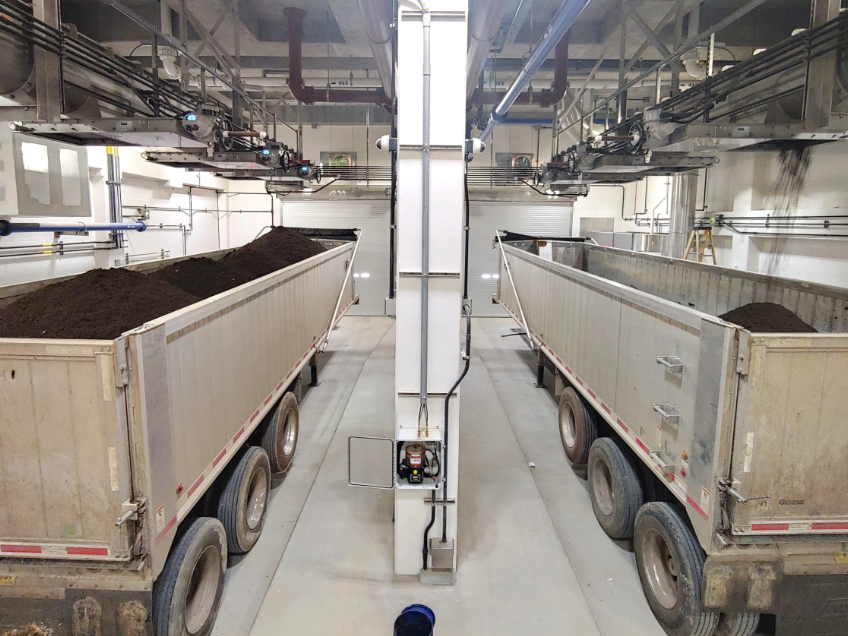

The JMS Bio-GATE is designed for wastewater treatment sludge, grit, and screening applications. For shafted or shaftless screw conveyor applications, the Bio-GATE allows transfer of product to different conveyors or distributes it to storage yards, vessels, or truck trailers. It can also be used under Bio-HOPPER and Bio-SILO live-bottom screws for truck load-out.

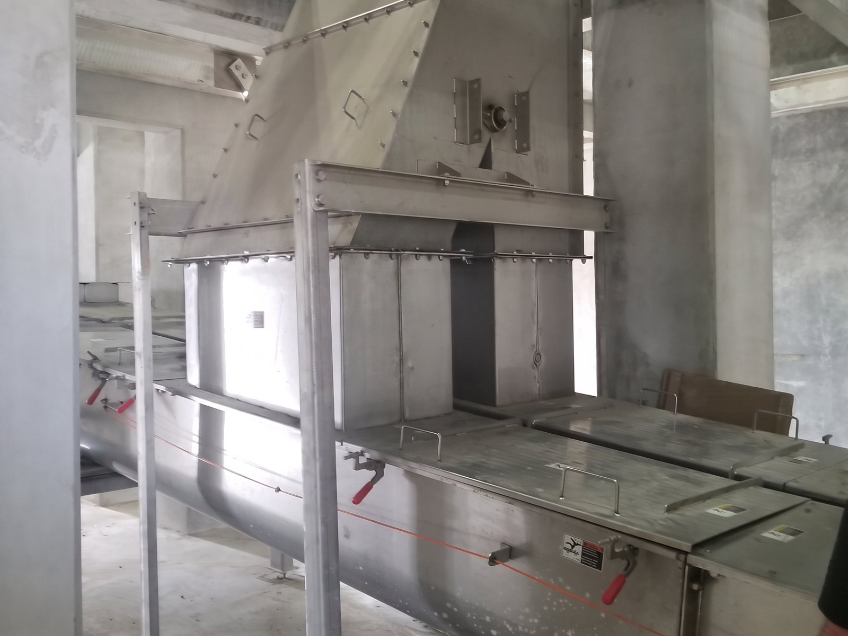

The JMS Bio-DIVERTER is custom-made for wastewater treatment sludge, grit, and screenings applications. It is a gravity-flow diverter chute: a single inlet routes material to two or more divergent outlets, and an internal flap valve directs the flow. It can be used upstream to feed conveyors or downstream for product transfer and distribution to storage yards, vessels, or truck trailers.
